Segment implementation

Segment is core part of index. It represents one string sorted table file with:

  • Partial consistency - iterator stop working or return consistent data
  • Support Writing changes into delta files
  • Bloom filter for faster evaluating if key is in index
  • Scarce index for faster searching for data in main index

Segment put/get and iterate consistency

operations like write and get should be always consistent. What is written is read. Iteration behave differently. better than provide old data it stop providing any data.

Let's have a followin key value entries in main index:

<a, 20 >
<b, 30 >
<c, 40 >

In segment cache are following entries:

<a, 25>
<e, 28>
<b, tombstone>

When user will iterate throught segment data, there will be followin cases:

Case 1 - Read data

iterator.read() --> <a, 25>
iterator.read() --> <c, 40>
iterator.read() --> <e, 28>

Case 2 - Change data

iterator.read() --> <a, 25>
segment.write(c, 10)
iterator.read() --> null

Any segment write operation will break segment iterator. It's easier way to secure segment consistency.

Caching of segment data

Segment caching has two parts: in-memory caches for write/delta data and lazy-loaded disk-backed resources.

In-memory caches: * SegmentCache keeps three views: write cache (new writes), frozen write cache (snapshot during flush), and delta cache (in-memory view of on-disk delta files). * On segment creation, SegmentBuilder#createSegmentCache calls SegmentDeltaCacheLoader.loadInto, which reads all delta files and populates the delta cache. This is the only eager load. * During flush, freezeWriteCache moves the current write cache into the frozen cache, writes it to a delta file, then merges it into the delta cache (mergeFrozenWriteCacheToDeltaCache). * Reads consult write → frozen → delta. Iteration merges the index iterator with SegmentCache.getAsSortedList().

Lazy-loaded resources: * SegmentResourcesImpl lazily loads and caches the Bloom filter and scarce index via SegmentDataSupplier. They are created on first access and held in AtomicReferences. * SegmentDeltaCacheController.clear(...) invalidates these resources when delta files are cleared (compaction or replacement) to avoid stale lookups. * SegmentReadPath also caches SegmentIndexSearcher for point lookups and resets it on maintenance.

Segment directory layout

Segment writes all files into the Directory passed to SegmentBuilder. That directory can point to:

  • Index root (flat layout): segment files live next to index.map.
  • Per-segment directory (segment-root layout): e.g. segment-00001/ contains all files for that segment.

For segment id segment-00001 the directory contains:

  • v01-index.sst - main SST file
  • v01-scarce.sst - sparse index
  • v01-bloom-filter.bin - Bloom filter store
  • manifest.txt - segment metadata (active version, delta count)
  • .lock - segment lock file
  • v01-delta-0000.cache, v01-delta-0001.cache, ... - delta cache files (4-digit padded counter)

Versioned layouts use the vNN- marker in file names when SegmentPropertiesManager records the active version, e.g. v02-index.sst and v02-delta-0001.cache.

Writing to segment

Opening segment writer immediatelly close all segment readers. When writing operation add key that is in index but is not in cache this value will not returned updated.

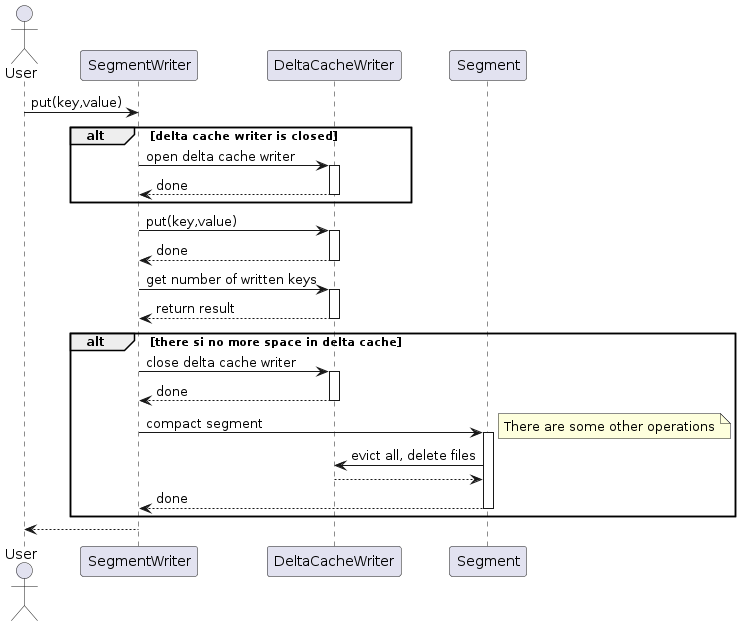

Putting new entry into segment is here:

Segment writing sequence diagram
