Monitoring

Monitoring architecture covers runtime observability and runtime-safe operational control.

High-level runtime flow

Runtime monitoring data comes from the Segment API surface on SegmentIndex.metricsSnapshot(). The management agent reads snapshots for /api/v1/report, and runtime-safe config overrides are applied in-memory only for the running process. Monitoring and management APIs do not directly access index files.

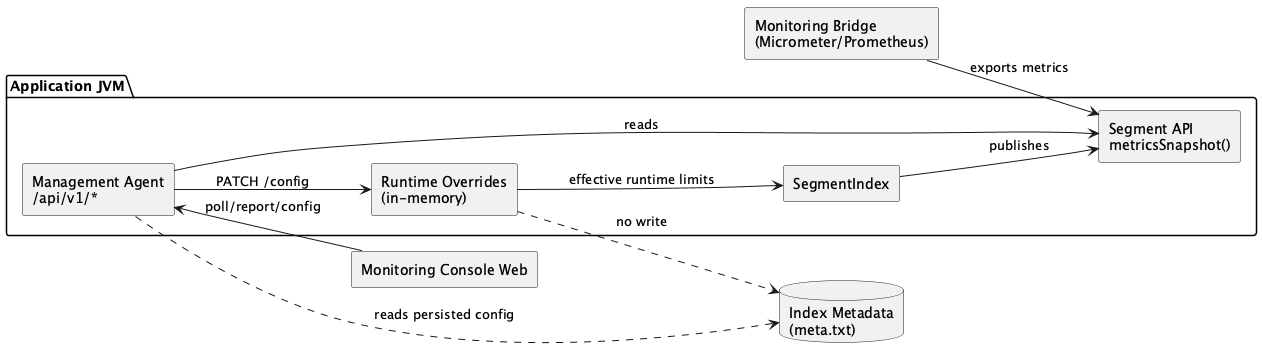

Monitoring runtime flow

Scope

  • Monitoring Bridge: optional adapters that export runtime snapshots to external systems (Micrometer/Prometheus).
  • Monitoring API: node-local management API exposed by monitoring-rest-json (/api/v1/*) for reports, actions, and runtime config overrides.

Module structure

  • engine
  • monitoring-micrometer
  • monitoring-prometheus
  • monitoring-rest-json-api
  • monitoring-rest-json
  • monitoring-console-web

Runtime model

  • monitoring-rest-json aggregates snapshots from all monitored indexes in one JVM.
  • monitoring-console-web consumes the API and renders node/index runtime views.
  • Runtime config overrides are applied in memory only and do not rewrite persisted index metadata.
  • GET /api/v1/config exposes supportedKeys; the same list defines which keys are accepted by PATCH /api/v1/config.
