Concurrency & Lifecycle

Glossary

  • Published view: immutable view of the main index, delta cache, bloom filter, and sparse index.
  • Write cache: mutable map of recent writes not yet published.
  • Segment version: monotonic epoch counter used by optimistic iterators.
  • Maintenance thread: dedicated background thread for disk IO.

Segment operations

Please look at main operations supported by segment. Other operations are from thread-safety not interesting.

Operation Description
Segment.builder(directory) Create a builder for constructing a segment with the provided directory.
compact() Start compaction; returns once accepted.
openIterator(isolation) Open an iterator with the requested isolation level.
put(key, value) Write into the in-memory write cache.
flush() Flush write cache to delta cache; returns once accepted.
get(key) Perform a point lookup.
getState() Return the current segment state.
close() Start async close; transitions to CLOSED when finished.
  • flush() and compact() return SegmentResult<Void>; completion is observed by getState() returning READY.
  • close() returns SegmentResult<Void> only; completion is observed via getState().
  • Do not wait for READY while running on the segment maintenance executor thread; this can deadlock the maintenance queue.

Response Codes

All method depending on segment state could replay with on of the follown codes:

Code Description
OK Processed successfully or operation was accepted and scheduled; completion is observed when the segment returns to READY.
BUSY Temporary refusal; retry makes sense.
CLOSED Segment permanently unavailable.
ERROR Unrecoverable.
  • BUSY/CLOSED/ERROR mean the operation was not started.

Iterator Modes

Segmend can open iterator in following modes:

  • INTERRUPT_FAST (default): optimistic read; throws on version change. Reads a snapshot of the merged view captured at open time.
  • STOP_FAST: optimistic read; stops on version change. Reads a snapshot of the merged view captured at open time.
  • EXCLUSIVE_ACCESS: stop-the-world maintenance; blocks other operations and must be short. Reads a merged snapshot captured while the segment is frozen.

Segment States

Segment could be in one of following states. States:

  • READY: normal operation.
  • MAINTENANCE_RUNNING: background flush() or compact() is executing.
  • FREEZE: short exclusive phase for snapshot or swap.
  • CLOSED: segment closed.
  • ERROR: unrecoverable.

If an operation is not allowed in the current state, return BUSY in FREEZE or MAINTENANCE_RUNNING, CLOSED in CLOSED, and ERROR in ERROR.

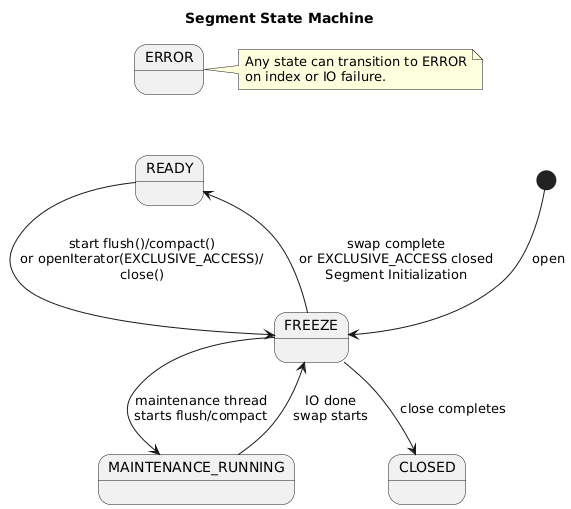

Segment state machine

Transitions

Original State New State When
READY FREEZE start of flush(), compact(), close or openIterator(EXCLUSIVE_ACCESS)
FREEZE MAINTENANCE_RUNNING maintenance thread starts flush() or compact()
MAINTENANCE_RUNNING FREEZE maintenance IO finished, swap to new files starts
FREEZE READY swap complete or openIterator(EXCLUSIVE_ACCESS) closed
any ERROR index or IO failure
FREEZE CLOSED close() completes

Optimistic locking

Core concept is that all data read via an iterator are immutable to the reader. When flush() is called, iterators must stop to avoid serving a stale snapshot. This is done via optimistic locking: when a segment iterator is opened it reads the segment version, and before each read it verifies the version has not changed. If the version changes, the iterator is interrupted. The version increments when a new immutable view is published (after flush() or compact() swaps in new files) and when EXCLUSIVE_ACCESS is acquired.

Iterator Isolation

optimistic locking allows distinguis following iteration modes:

  • FAIL_FAST: optimistic read; any mutation can invalidate the iterator and terminate iteration early.
  • FULL_ISOLATION: exclusive access for the iterator lifetime; blocks writes, flush/compact, and split on the same segment until closed.

Segment Behavior

Segment can be accessd from multiple threads in paraell. Segment

Operation Behavior Matrix

Operation Allowed states Version bump Iterator impact Read write cache Read delta cache Notes
put READY; MAINTENANCE_RUNNING (until cache full) No None N/A N/A Writes to write cache; in MAINTENANCE_RUNNING, returns BUSY if cache full.
get READY, MAINTENANCE_RUNNING No None Yes Yes No read lock required.
flush READY Yes (after publish) Invalidates optimistic iterators N/A N/A Serialized; concurrent request returns BUSY. May be triggered by full write cache.
compact READY Yes (after publish) Invalidates optimistic iterators N/A N/A Serialized; concurrent request returns BUSY. May be triggered by full delta cache.
openIterator(INTERRUPT_FAST) READY No Throws on version change Yes (snapshot) Yes Default mode.
openIterator(STOP_FAST) READY No Stops on version change Yes (snapshot) Yes Snapshot captured at open time.
openIterator(EXCLUSIVE_ACCESS) READY Yes (on lock acquisition) Invalidates existing iterators; blocks others Yes Yes Maintenance only; must be short.
close READY No Invalidates existing iterators; blocks others N/A N/A Sets FREEZE, optionally flushes the write cache, schedules close on maintenance thread, then transitions to CLOSED.

Flush/Compact Lifecycle

  1. Caller enters FREEZE, drains in-flight ops, and prepares the maintenance plan (flush freezes the write cache; compact captures a snapshot).
  2. Maintenance thread sets MAINTENANCE_RUNNING and performs IO.
  3. When IO completes, state returns to FREEZE and new index/delta files are swapped in.
  4. Version increments immediately after the swap (publication).
  5. State becomes READY.
  6. Concurrent flush()/compact() requests return BUSY.

Failure & Cancellation

  • On flush() or compact() failure, the current maintenance task aborts and the segment moves to ERROR (unless already CLOSED).
  • If close() is called during maintenance, the segment returns BUSY. Retry after the segment returns to READY.

Concepts

Core Rules

  • Concurrent reads/writes are supported; published data is immutable to readers.
  • No disk IO in caller threads; the maintenance thread performs disk IO.
  • Keep locks short; the state machine is the admission control.
  • flush() and compact() are commit points and are started asynchronously.
  • Segment is thread-safe by contract; callers may access it concurrently.
  • FREEZE is a short exclusive phase used for snapshotting, publish swaps, or close admission.

Contracts and Guarantees

Atomic Publish Invariant

  • Publication of a new immutable view is atomic: readers see either the old view or the new view, never a partial mix.
  • The view swap and version increment are linearized; operations after the swap observe the new view.

FREEZE Prohibitions

  • During FREEZE, all external operations return BUSY.
  • Only internal maintenance steps (snapshot and swap) run in this phase.

EXCLUSIVE_ACCESS Lifecycle

  • openIterator(EXCLUSIVE_ACCESS) is allowed only in READY; otherwise it returns BUSY.
  • On acquisition, the segment enters FREEZE and increments the version.
  • While held, all other operations return BUSY. The iterator must be closed to return to READY.

BUSY Reasons

  • Write cache full during MAINTENANCE_RUNNING (backpressure).
  • Segment is in FREEZE.
  • MAINTENANCE_RUNNING and the requested operation is not allowed.
  • flush() / compact() already running.
  • EXCLUSIVE_ACCESS held or requested while not READY.

Retry and Backpressure Guidance

  • Treat BUSY as transient; retry with backoff and jitter.
  • For write-cache full during MAINTENANCE_RUNNING, retry writes after maintenance publishes a new view.
  • For maintenance or exclusive access, retry after the segment returns to READY.

Automatic Maintenance Triggers

  • If the delta cache becomes full, the segment schedules compact().
  • If the write cache becomes full, the segment schedules flush().
  • These triggers transition the segment out of READY (into FREEZE/MAINTENANCE_RUNNING) before refusing new writes.

Memory Visibility

  • The published view is swapped under FREEZE (exclusive); new reads see only the old or the new view, never a partial publish.
  • Version increments provide an ordering point for optimistic iterators.

Freshness vs Consistency

  • get reads from the write cache and published view (freshest data).
  • Iterators read a snapshot of the merged view (published + write cache) taken at open time; later put() calls are not visible. Iterators are invalidated only by version changes (publish or EXCLUSIVE_ACCESS).

Serialized State Transitions

  • State transitions are serialized; only one transition is in flight at a time.
  • flush(), compact(), and EXCLUSIVE_ACCESS are mutually exclusive and linearized.

Implementation Details

Thread Safety Mechanisms

  • Segment version is stored in VersionController (an AtomicInteger).
  • The write cache uses a thread-safe map implementation.
  • SegmentConcurrencyGate tracks in-flight reads/writes and drains them during FREEZE.

Maintenance Execution

  • SegmentMaintenanceService.startMaintenance(...) enters FREEZE, drains in-flight ops, builds work, then transitions to MAINTENANCE_RUNNING and schedules the maintenance task.
  • runMaintenance(...) executes IO work, returns to FREEZE, runs publish work, then returns to READY and optionally runs the onReady callback.
  • Failures call gate.fail() unless the segment is already CLOSED.

Versioning and Iterator Invalidation

  • SegmentWritePath.applyFrozenWriteCacheAfterFlush() merges frozen entries and bumps the version when a snapshot was applied.
  • SegmentCompacter.publishCompaction(...) bumps the version after publish.
  • SegmentCore.invalidateIterators() bumps the version for explicit invalidation or exclusive access.

Close Workflow

  • SegmentImpl.close() enters FREEZE, drains in-flight ops, freezes the write cache, and schedules runClose(...) on the maintenance executor.
  • runClose(...) flushes frozen data (if any), closes the core, transitions to CLOSED, and releases the segment lock.

Components

  • Segment: user-facing API (put, get, openIterator, flush, compact) implemented by SegmentImpl.
  • SegmentImpl: owns SegmentStateMachine, checks state, and delegates to SegmentCore. Schedules maintenance work on the provided executor.
  • SegmentCore: single-threaded core with caches, on-disk access, and version tracking.
  • SegmentStateMachine: atomic lifecycle transitions (READY → FREEZE → MAINTENANCE_RUNNING → READY).
  • SegmentCompacter: performs full rewrite compaction using SegmentCore.
  • SegmentMaintenanceCoordinator (segmentindex): decides when to call flush()/compact() after writes.
  • SegmentAsyncExecutor + executor (segmentindex): maintenance executor provided to SegmentImpl via SegmentRegistry.
  • SegmentAsyncSplitCoordinator / SegmentSplitCoordinator (segmentindex): schedule and perform segment splits.

Responsibilities

  • SegmentImpl: gates operations with the state machine, schedules maintenance on the executor, and reports status via SegmentResult.
  • SegmentCore: executes single-threaded read/write/maintenance steps, manages caches and version updates, and performs no threading or state transitions.

Implementation Mapping

  • EXCLUSIVE_ACCESS in this document maps to SegmentIteratorIsolation.FULL_ISOLATION in code.
  • INTERRUPT_FAST / STOP_FAST map to SegmentIteratorIsolation.FAIL_FAST.
  • State transitions are enforced by SegmentStateMachine and executed in SegmentMaintenanceService.startMaintenance(...) and SegmentMaintenanceService.runMaintenance(...).
  • Maintenance scheduling lives in SegmentMaintenanceCoordinator and uses the executor from SegmentRegistry (SegmentAsyncExecutor).

Future: MVCC

Currently unused. MVCC could support iterators that remain consistent across version changes, balancing deadlocks, performance, and memory.
