Monitoring Console Configuration

This page describes the direct mode architecture:

  • your application JVM runs engine.jar + monitoring-rest-json
  • monitoring-console-web connects directly to node monitoring-rest-json APIs
  • no middle monitoring-console service is required
  • Node JVM(s):
  • HestiaStore engine
  • monitoring-rest-json exposing /api/v1/* for all registered indexes
  • Web JVM:
  • monitoring-console-web UI
  • polls each node directly and sends actions directly

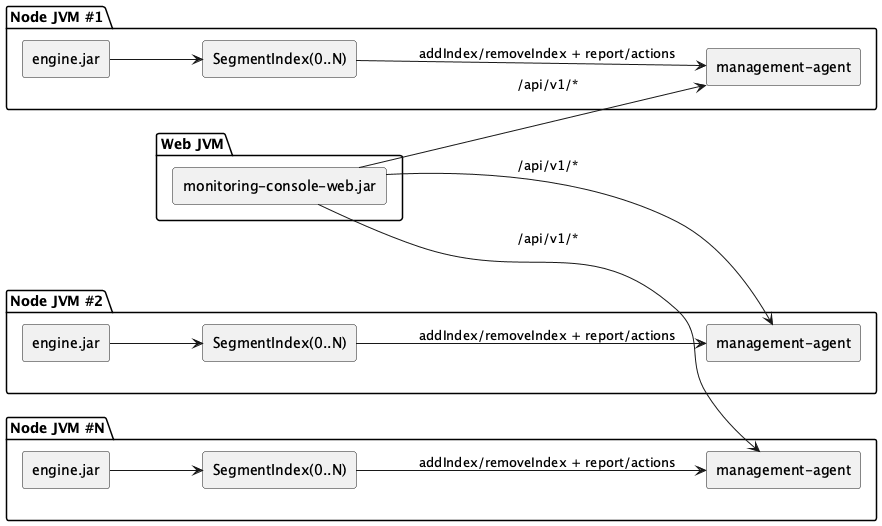

Monitoring Components Topology

PlantUML source: docs/configuration/images/monitoring-components.plantuml

Node-side API (monitoring-rest-json)

Each node exposes:

  • GET /api/v1/report (JVM section + per-index sections)
  • POST /api/v1/actions/flush
  • POST /api/v1/actions/compact

Action request can optionally target a specific index:

{
  "requestId": "req-1",
  "indexName": "orders"
}

When indexName is omitted, action is applied to all indexes registered in that node's ManagementAgentServer.

Configure monitoring-console-web

monitoring-console-web/src/main/resources/application.yml:

hestia:
  console:
    web:
      nodes:
        - node-id: node-1
          node-name: index-1
          base-url: http://127.0.0.1:9001
          agent-token: ""
      refresh-millis: 2500

For multiple nodes, add more entries to nodes.

Start web application

mvn -pl monitoring-console-web spring-boot:run

Open:

One-command local demo (direct mode)

This command starts:

  • 3 in-memory nodes with monitoring-rest-json
  • synthetic load generator
  • monitoring-console-web connected directly to those nodes
./monitoring-console-web/scripts/start-example.sh

Optional ports:

AGENT_BASE_PORT=19001 WEB_PORT=18090 ./monitoring-console-web/scripts/start-example.sh

Then open:

Notes

This project now uses direct mode only for console UI integration: monitoring-console-web connects directly to monitoring-rest-json endpoints.
