Package Layout

This document defines dependency direction between HestiaStore packages so the core remains lightweight and integration layers can evolve independently.

Current module layout

This page also captures the current module-to-package alignment (previously documented as "Module Current State").

Domain Current module directory Current artifactId Current package root
Parent build . (repository root) hestiastore-parent N/A (parent POM only)
Index core engine engine org.hestiastore.index
Monitoring and management API contracts monitoring-rest-json-api monitoring-rest-json-api org.hestiastore.monitoring.json.api
Monitoring bridge (Micrometer) monitoring-micrometer monitoring-micrometer org.hestiastore.monitoring.micrometer
Monitoring bridge (Prometheus) monitoring-prometheus monitoring-prometheus org.hestiastore.monitoring.prometheus
Node monitoring/management REST bridge monitoring-rest-json monitoring-rest-json org.hestiastore.management.restjson
Monitoring console web UI monitoring-console-web monitoring-console-web org.hestiastore.console.web

Target package roles

  • org.hestiastore.index.* Core storage/index engine and public data APIs.
  • org.hestiastore.monitoring.json.api.* Shared monitoring/management REST JSON contracts.
  • org.hestiastore.monitoring.micrometer.* Micrometer integration layer.
  • org.hestiastore.monitoring.prometheus.* Prometheus integration layer.
  • org.hestiastore.management.restjson.* Node-local management endpoints running in index JVM.
  • org.hestiastore.console.web.* Central web console/control-plane UI.

Allowed dependency direction

index <- monitoring bridges
index + monitoring REST/JSON API contracts <- management REST/JSON bridge
management REST/JSON bridge <- console web (HTTP)

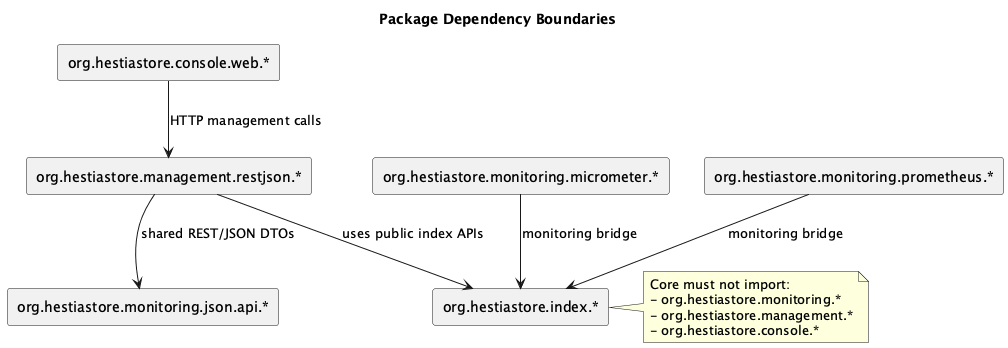

Package dependency diagram

Package dependency boundaries

Source: packages.plantuml

Rules:

  • Core must not import:
  • org.hestiastore.monitoring.*
  • org.hestiastore.management.*
  • org.hestiastore.console.*
  • Monitoring must use only public core APIs (no package-private internals).
  • Management/console REST JSON communication must reuse contracts from org.hestiastore.monitoring.json.api.* and avoid duplicate DTO definitions.

SegmentIndex internal rules:

  • core.routing owns runtime route state and scoped segment leases. It may combine SegmentRouteMap, RouteTopology, and SegmentRegistry for point-operation leases and split drains, but must not depend on session, storage, or split orchestration packages.
  • core.split may depend on SegmentRegistry for child materialization and retired/prepared segment cleanup. Split code obtains route-drain access through core.routing.
  • mapping must not depend on split orchestration packages.

Enforcement

The PackageDependencyBoundaryTest classes enforce these rules with ArchUnit. The SegmentIndex-specific test keeps storage, routing, split, execution, and mapping dependencies pointing through the intended package boundaries.
