SegmentIndex Implementation

This page is a locator map for the SegmentIndex implementation. It shows the main layers from the public SegmentIndex interface down to the physical Segment implementation, so maintainers can quickly decide where to inspect a behavior before opening the detailed read, write, split, registry, or segment pages.

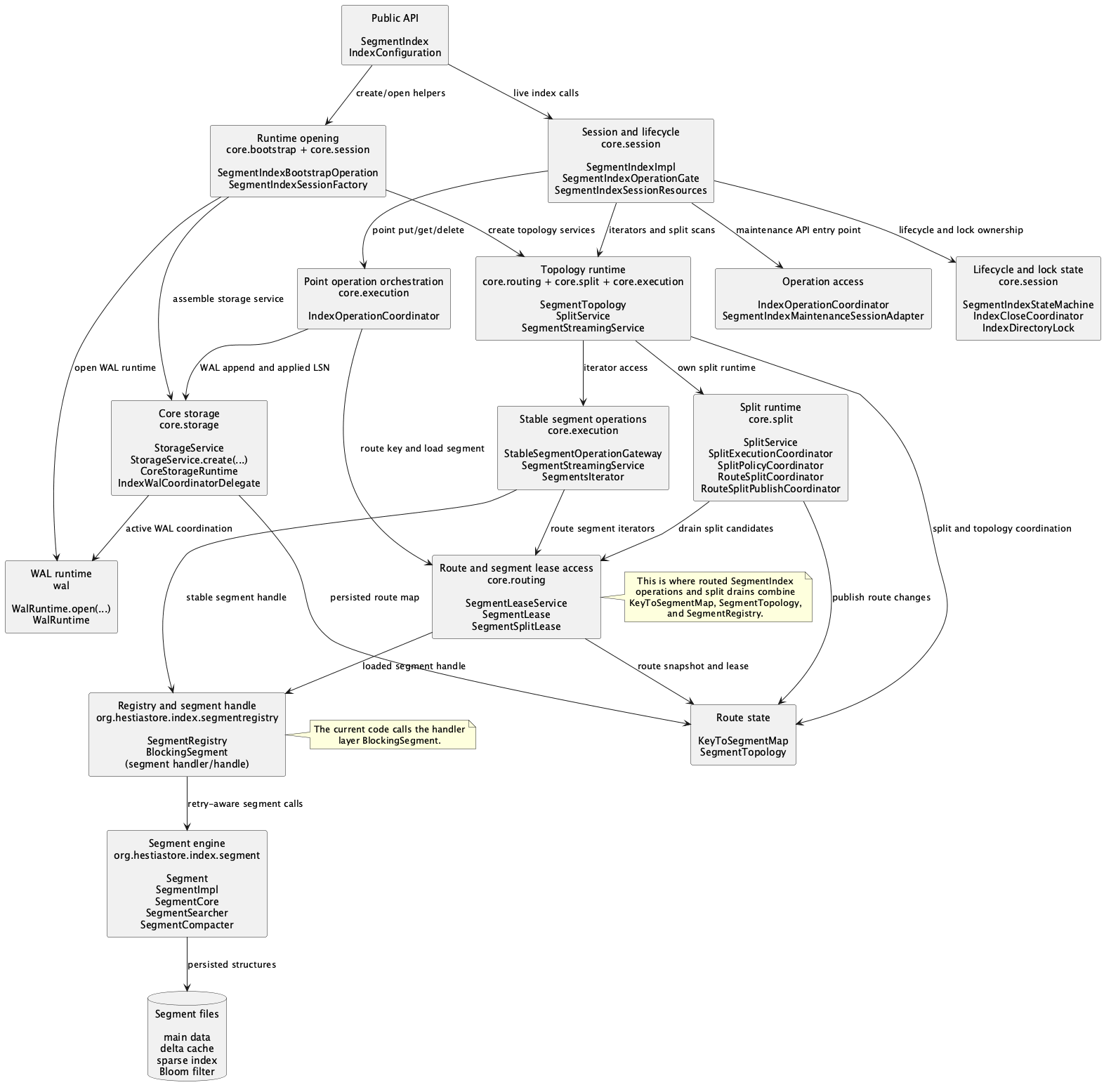

Layer Diagram

SegmentIndex implementation layers

Source: implementation-layers.plantuml

Layer Responsibilities

Layer Main classes Responsibility
Public API SegmentIndex, IndexConfiguration, IndexConfigurationBuilder External create/open and user-facing operations. This is the compatibility boundary.
Session and lifecycle SegmentIndexSession, SessionOperationGate, SegmentIndexStateMachine, SegmentIndexRuntimeResources, SessionCloseCoordinator API method implementation, lifecycle state checks, lifecycle/lock ownership, close safety, context logging, and operation tracking for one live index session. SegmentIndexSessionAssembler is the session composition point.
Operation access PointOperationCoordinator, MaintenanceApiAdapter, MappedSegmentMaintenanceService Small call-specific boundaries for point operations, iterator operations, and foreground maintenance.
Runtime opening SegmentIndexBootstrapOperation, SegmentIndexSessionAssembler Long-lived runtime graph for one open index: core storage, topology, WAL, metrics, runtime tuning, and service wiring. The bootstrap operation opens runtime resources in order and owns rollback cleanup until the session close coordinator takes ownership.
Topology runtime RouteTopology, SplitRuntime, SegmentIteratorService Segment route topology, split runtime, iterator invalidation, and recovery cleanup. Topology is created during bootstrap because it depends on storage, executors, runtime state, and failure handling.
Split runtime SplitRuntime, SplitTaskCoordinator, SplitPolicyScheduler, RouteSplitPlanner, RouteSplitPublisher Schedules split candidates, drains mapped routes, materializes child stable segments, publishes route-map changes, and records split metrics.
Core storage StorageCoordinator, StorageCoordinator.create(...), OpenedStorageRuntime, WalCoordinator, ActiveWalCoordinator, NoopWalCoordinator Provides the storage package access point, owns core storage close ordering, and keeps storage-only helpers such as WAL coordination behind the service boundary. Physical key map, chunk cache, and registry opening stay explicit in the bootstrap operation so dependencies stay visible.
Point operations PointOperationCoordinator Point put, get, delete, WAL append/replay, applied LSN recording, request counters, and operation latency metrics.
Route and segment lease access MappedSegmentLeaseService, MappedSegmentLease, RouteSplitLease, SegmentRouteMap, RouteTopology Key-to-segment lookup, route snapshot validation, route leases/drains, registry-backed segment loading, retry on stale/draining routes, and scoped access to routed or split-drained segments.
Stable segment operations NonBlockingSegmentOperationGateway, SegmentIteratorService, StableSegmentsIterator, MappedSegmentMaintenanceService Single-attempt stable-segment calls used by iterator and maintenance paths, with OK, BUSY, CLOSED, and ERROR translated into index-level retry decisions. Iterator paths obtain segment handles through MappedSegmentLeaseService; route leases are released after the segment iterator is opened.
Registry and segment handle SegmentRegistry, BlockingSegment Segment cache, lifecycle, loading/reloading, materialization helpers, runtime tuning view, and retry-aware access to a loaded segment. BlockingSegment is the current segment handler/handle layer.
Segment engine Segment, SegmentImpl, SegmentCore, SegmentSearcher, SegmentCompacter Segment-local reads, writes, flush, compaction, consistency checking, caches, sparse index, Bloom filter, and on-disk files.

Where to Look

  • Public API behavior: start at SegmentIndex and SegmentIndexSession.
  • Create/open flow: inspect the static factories on SegmentIndex, SegmentIndexBootstrapOperation, and SegmentIndexSessionAssembler.
  • Operation rejected during close/open/error: inspect SegmentIndexSession, SessionOperationGate, SegmentIndexStateMachine, and SessionCloseCoordinator.
  • Point put, get, or delete: inspect PointOperationCoordinator.
  • Key routing, route drains, split leases, or stale topology retries: inspect MappedSegmentLeaseService, SegmentRouteMap, and RouteTopology.
  • Segment loading, registry cache, or retry-aware segment handles: inspect SegmentRegistry and BlockingSegment.
  • Iterator and stream behavior: inspect SegmentIteratorService and StableSegmentsIterator.
  • Flush, compaction, and wait semantics: inspect MappedSegmentMaintenanceService, NonBlockingSegmentOperationGateway, and SegmentImpl.
  • Actual per-segment data layout and lookup mechanics: inspect Segment, SegmentImpl, SegmentCore, SegmentSearcher, and SegmentCompacter.
  • Split scheduling and route publication: inspect SplitRuntime, SplitPolicyScheduler, SplitTaskCoordinator, RouteSplitPlanner, and RouteSplitPublisher.
